Piezo pickup for 7-string classical guitar and 8-strings classical guitar
NG-7S is the perfect solution for 7-string and 8-strings classical guitar players who want to capture the sound of their extended range instrument. Live or in the studio, it’s a classical guitar pickup that brings true nylon-string sound, and does it without an installation that requires modification.

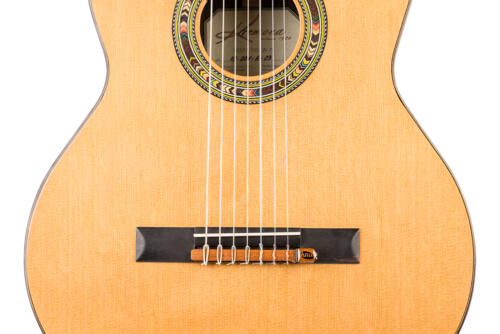

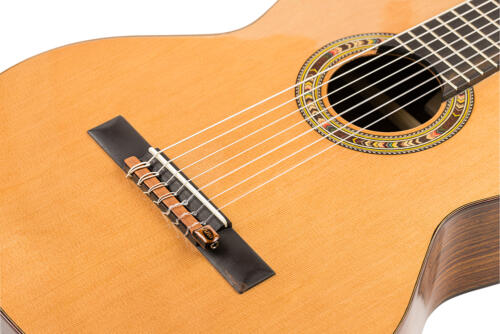

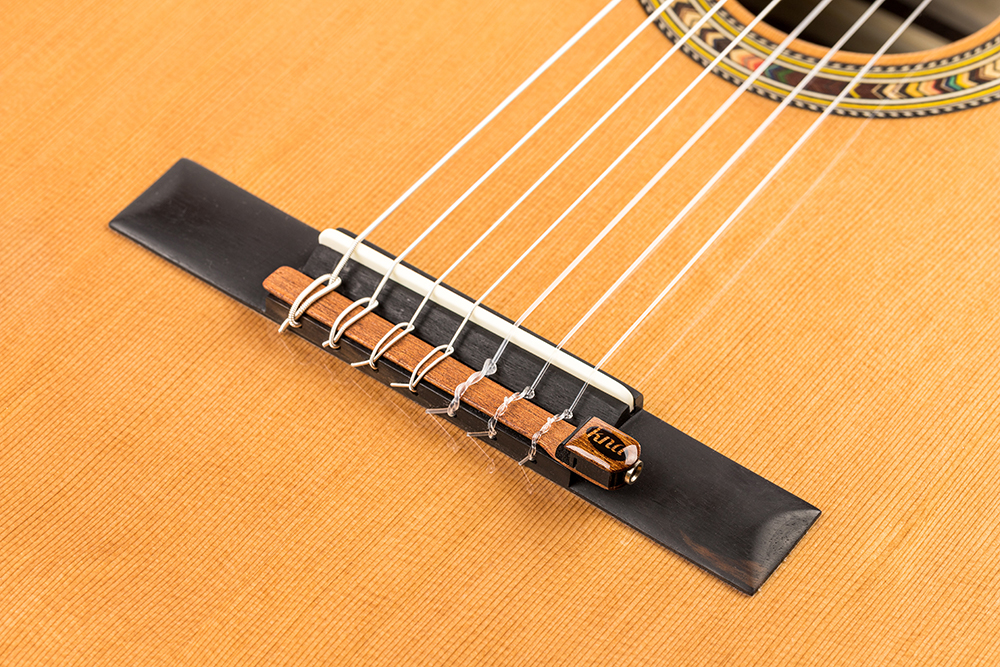

Utilizing the tension of the strings, the guitar pickup design of NG-7S installs safely and securely on the classical or flamenco guitar tie block. NG-7S has a passive system designed to work flawlessly with your favorite acoustic amplifier or preamplifier.

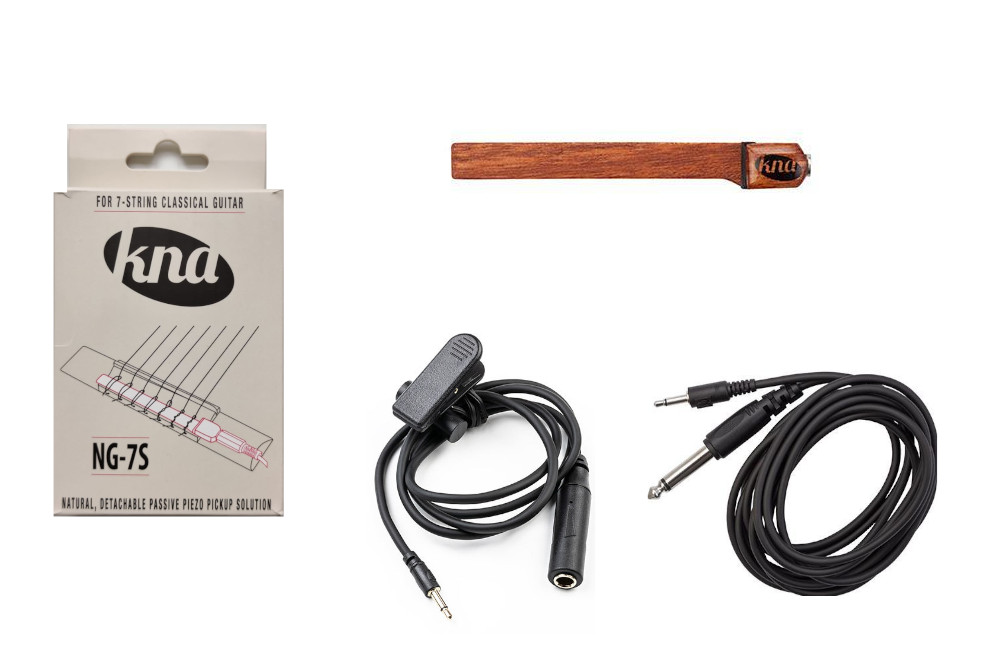

Two cables are included – plug in directly with the 9-ft. 1/8″ to 1/4″ cable, or use the 3-ft. 1/8″ to female 1/4″ jumper with safety clip to connect with the instrument cable of your choice.
SPECIFICATIONS
| Weight | 5g. / 0.176oz |
| Overall length | 107mm / 4.21″ |
| Height / jack housing | 9mm / 0.35″ |

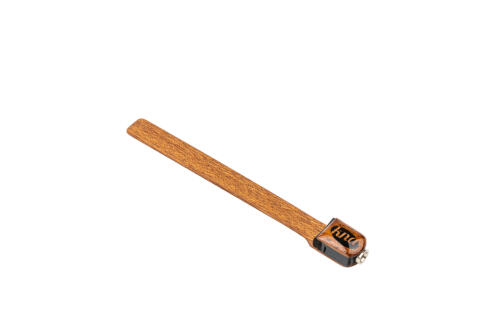

| Active element measurements | |
| Length | 85mm / 3.35″ |
| Width | 9.6mm / 0.38″ |
|
Thickness |
2mm ± 0.05mm 0.079″ ± 0.002″ |
| Wood | Mahogany |
| Maximum Impedance | 500 Ω |
| Cables | |
| Jumper cable with safety clip | 1meter / 3′ |
| Amp cable | 3meter / 9′ |
Classical Guitar
